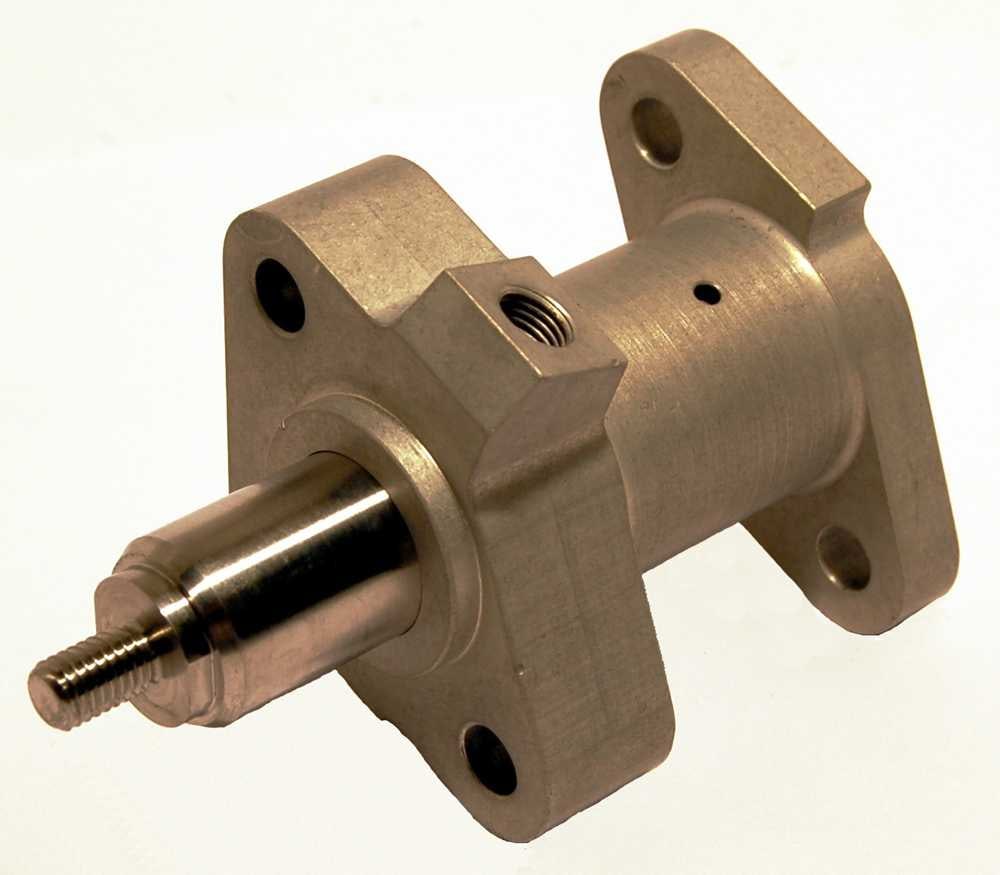

CP7950 is a power actuator is designed to be used in conjunction with a electronic control power hydraulic system (e.g. Paddle Shift) to operate the clutch. It is fitted between the clutch pedal and a standard master cylinder and allows manual operation using the clutch pedal if required.

TECHNICAL SPECIFICATIONS:
- Aluminium alloy body material.
- Operate with Mineral oil only.
- Weight = 397g.- Full Stroke = 25.4mm (1.0").
- Effective Piston Area = 178.0mm².
- Hydraulic Threads = M10x1.0.
- Optional Travel sensor available.
- Seal Repair Kit = CP7950-6RK

PART NUMBERS:
- CP7950-5 (with CP4623-88NC Master Cylinder Included).
- CP7950-6 )without CP4623-88NC Master Cylinder).

Download Installation Drawing:
CP7950 Customer Drawing
